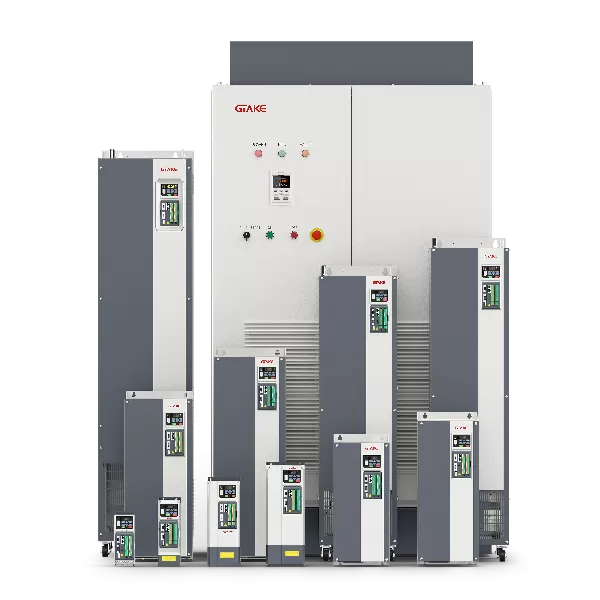

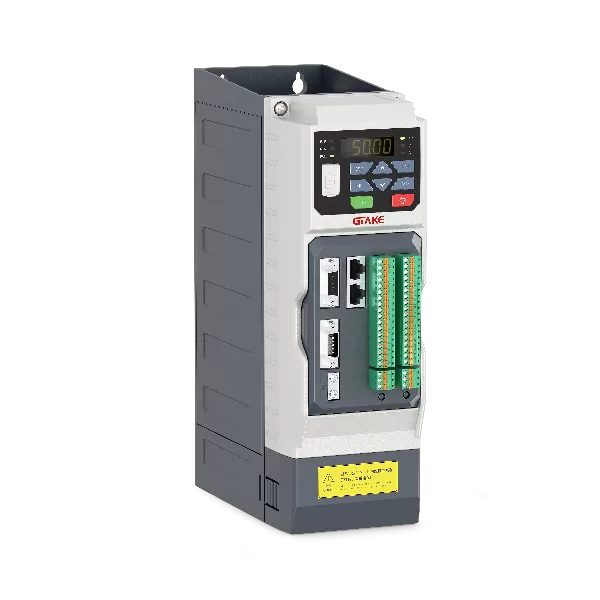

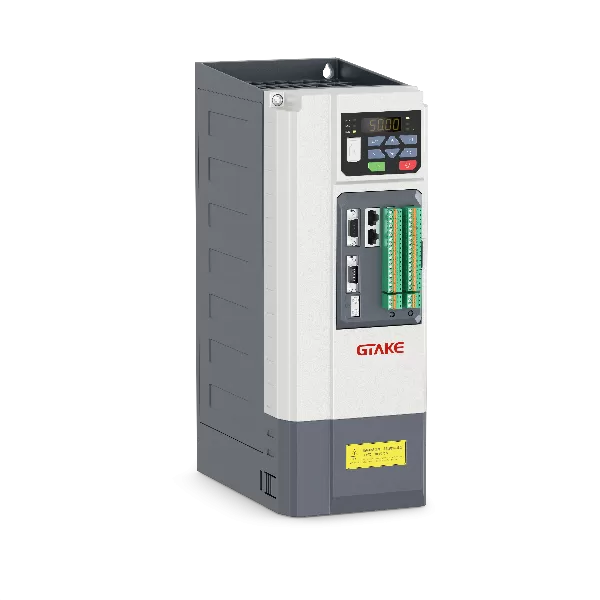

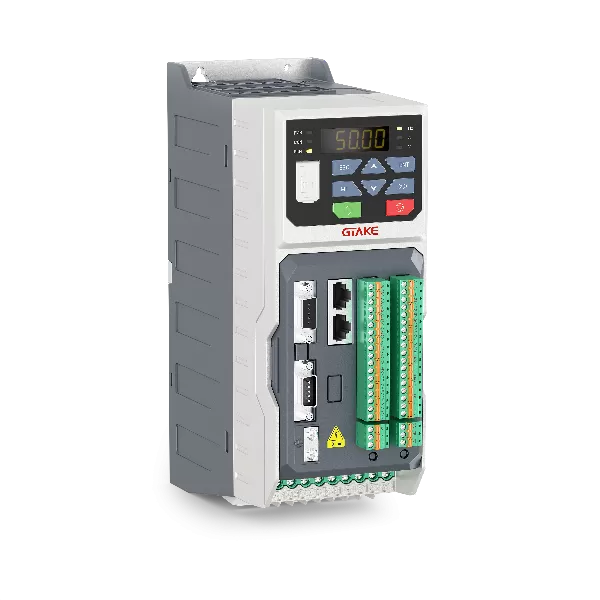

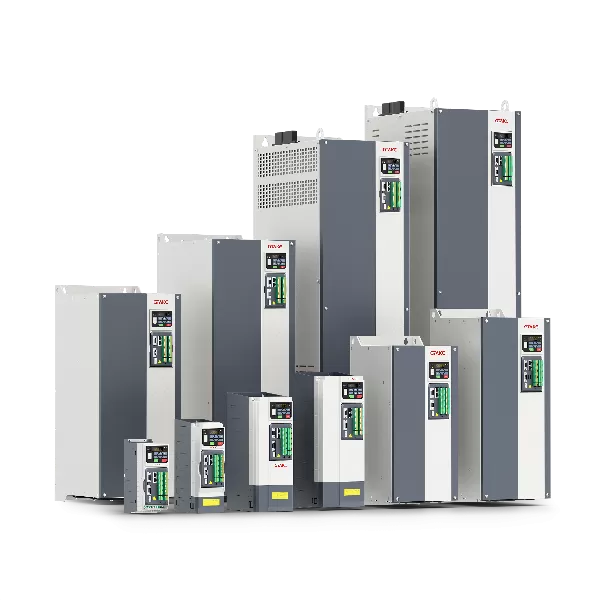

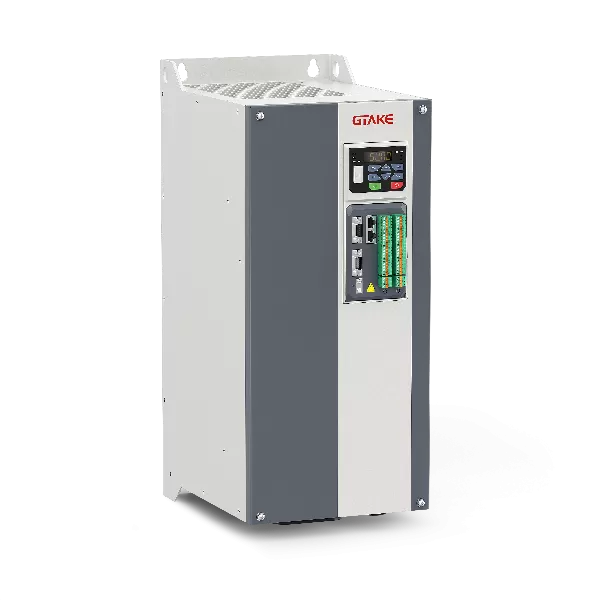

GK920 is the book-type versatile series which can be used to replace GK620 and GK820 with more cost-effective price. Moreover, its performance is optimized and many new functions are added. It almost can be applied in all kinds of industries from the simple fan & pump to the most demanding ones.
Outstanding speed tracing function for PMSM & ACIM.
Multi EMC specs and solutions to meet CE standards.
Book-type VersatileGK920 Technical Features
| Mains Supply (R/L1,S/L2,T/L3) | |
| Supply voltage | 200V：170-264V -15%-10% 400V：323-484V -15%-10% |
| Power source frequency | 47-63 Hz |
| Displacement power factor (cos φ) | (> 0.98) |
| Output Data (U, V, W) | |
| Output voltage / frequency | 0-100% of supply voltage / 0.00-600.00 Hz or customized |
| Ramp time | 0.01-60000 S |
note: 150% current can be provided for 1 minute, 180% for 10 seconds, 200% for 0.5 seconds.
Higher overload rating is achieved by oversizing the drive.
| Digital Input | |
| Programmable digital inputs | 5 (10) |
| Logic | NPN or PNP |
| Voltage level | 10 – 30V |
| Pulse input | 1 (X5/DI) |
| Analog Input | |
| Analog Input | 2 (4) |
| Modes | Voltage or current |
| Level | 0 to +10V, -10V to +10V, 0/4 to 20 mA (scalable) |
| Automatic correction | YES |
| Digital Output | |
| Programmable digital outputs | 2 (5) |
| Voltage level at digital output | 0 – 24 V |
| Programmable pulse outputs | 1 |
| Pulse output max. output frequency | 50.0 kHz |
| Analog Output | |
| Programmable analog outputs | 1 (2) |
| Voltage range / current range | 0 – 10 V / 0 – 20 mA |
| Relay Output | |
| Programmable relay outputs | 1 (2) |
| RA – RB / TA – TB | Normally close |
| RA – RC / TA – TC | Normally open |
| Contact capacitance | 250 V AC / 3A, 30 V DC / 3 A |
| Terminal 485 Interface | |
| 485+ / 485- | Rate: 4800/9600/19200/38400/57600/115200 bps Max. distance: 500 m |
| GND | Isolated from COM |
| Fieldbus Communication | |
| Modbus RTU, Modbus ASCII, CAN | Built-in |
| Profibus DP, CANopen, EtherCAT, Modbus-Tcp, etc. | Optional |
| Ambient | |
| Vibration | Less than 5.9 m/s² (0.6g) |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Corrosive environment | 3C3 |
| Ambient temperature | -10ºC – 50 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current de-rated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +70 ºC |
| Efficiency | Efficiency At rated amps: |
| 7.5kW and below: ≥93% | |
| 11 – 45 kW: ≥95 % | |
| 55kW and above: ≥98 % | |
| IP grade | IP20 |
| Cooling method | Forced air cooling |
