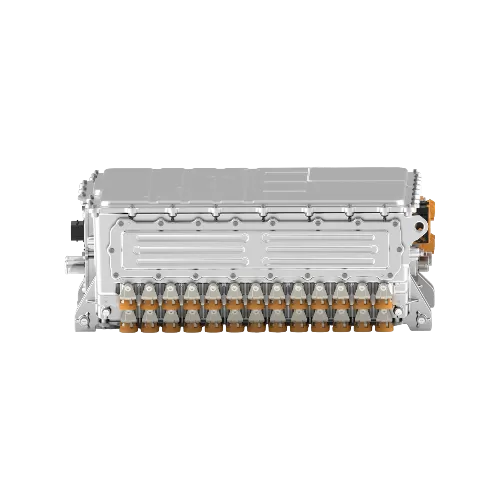

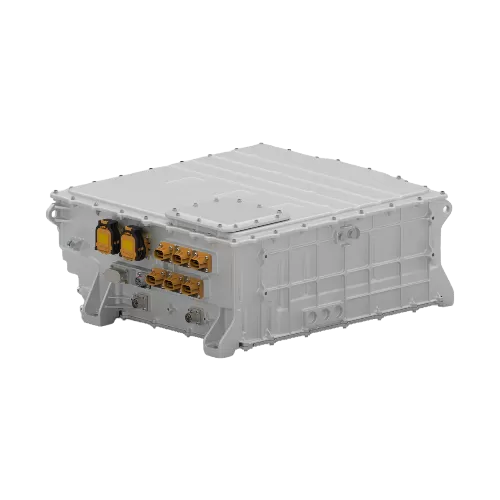

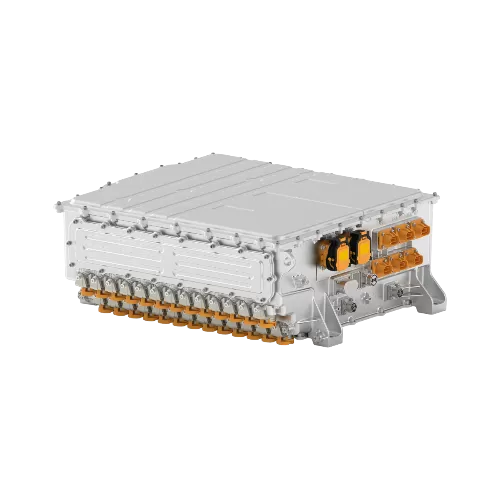

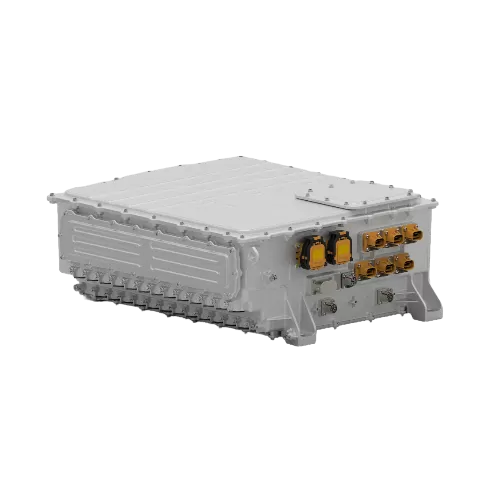

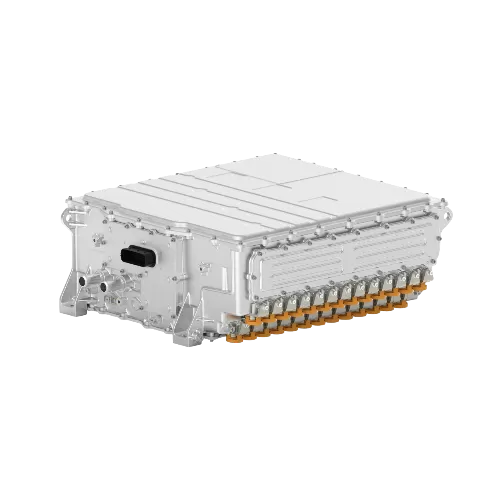

The GTKAE M20 Series is a highly integrated multi-in-one controller designed for commercial vehicles (buses, highway trucks, heavy-duty trucks, and construction machinery). It supports 7-in-1 or 8‑in‑1 flexible integration, capable of driving dual or triple main drives while combining auxiliary units such as oil pump, air pump, DC/DC converter, PDU, and BDU – significantly reducing cabling space and system costs.
Rated DC bus voltage: 620V, input range 400–750V; drive efficiency ≥ 98%, with peak main-drive capacity up to 592 kVA
Active damping technology effectively suppresses vehicle shudder caused by the drivetrain, greatly enhancing ride comfort
Scalable design with strong expandability, supporting “N+N” integrated solutions| Current/Power Option | |
| Model | KTZ54X** |
| Applicable motor | Synchronous / asynchronous motor |
| Input voltage range | 400~750 VDC |
| Rated input voltage | 620VDC |
| Rated Output Power | 150kVA |
| Peak Output Power | 270kVA |
| Mechanical parameter | |
| Weight | 50Kg, ±5% |
| Dimension | W×H×D(mm): 696*473*246 |
| Ambient | |
| Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
| Humidity | Relative humidity 5% – 95 %. No condensation |
| Ambient temperature | -40ºC – 55 ºC |
| Altitude | 0 – 2,000 m |
| Rated output current derated 1% every 100 m above 1,000 m | |
| Storage temperature | -40 – +85 ºC |
| Efficiency | ≥98 % at rated working condition |
| IP grade | IP 67 |
| Cooling method | Liquid cooling |
