Comprehensive Analysis of Four Quadrant AC Drives

Four quadrant AC drive is an electronic device capable of controlling the speed and direction of electric motors, typically used to regulate the operation of AC motors. It is widely employed in industrial applications requiring frequent starts/stops and energy regeneration, such as elevators, hoists, centrifugal systems, and oil extraction machines.

Four Quadrant AC Drives vs. Conventional AC Drives

In terms of motor control, four quadrant AC drives differ significantly from conventional two quadrant variable frequency drives. Conventional AC drives use a diode rectifier bridge to convert AC to DC, then invert it back to adjustable frequency and voltage AC using inversion technology. However, due to limitations of the diode rectifier bridge, conventional drives can only operate in forward and reverse motoring states, unable to achieve bi-directional energy flow or return motor feedback energy to the grid.

In contrast, four quadrant AC drives use IGBT power modules capable of bi-directional energy flow, serving as a rectifier bridge and generating SVPWM control pulses through high-speed, high-computing DSP. This allows four quadrant AC drives to adjust input power factors, reduce harmonic pollution to the grid, and promote energy efficiency. Importantly, these drives can feed back energy generated by the motor to the grid, enabling operations in forward motoring, reverse motoring, regenerative braking, and reverse braking modes, thereby enhancing energy efficiency.

Key Components

Four quadrant AC drives typically include the following key components.

  • Inverter: Converts DC power into adjustable frequency and voltage AC power to drive AC motors and control their speed and torque.
  • Rectifier: Converts AC power into DC power to supply the inverter.
  • Control System: Includes motor control algorithms, DSP or microcontrollers, managing the operation of the inverter and rectifier for smooth operation and transition.
  • Energy Feedback Unit: Manages energy recovered during motor regenerative braking, either feeding it back into the grid or dissipating excess energy through braking resistors to maintain system stability.
  • Sensors: Monitor motor operating conditions such as speed, torque, and current, providing feedback for precise motor control and adjustment.

Key Features

Four quadrant operation enables the Four Quadrant AC Drive to excel in motor control. It supports motor operation in four quadrants: forward motoring, reverse motoring, braking, and generating. The drive achieves precise control of motor speed and torque through modulation controllers, enhancing system stability and reliability. Moreover, Four Quadrant AC Drives recover and utilize energy during braking and generating processes, reducing energy consumption and emissions, thus meeting energy-saving and environmental protection requirements.


Due to their high efficiency and precise control characteristics, Four Quadrant AC Drives find wide application in industrial automation, elevator control, and electric vehicles.

  • Industrial Automation: Widely used in various motor drive systems such as conveyors, elevators, and winding machines, enabling automated and intelligent operation by precisely controlling motor speed and torque.
  • Elevator Control: Facilitates smooth elevator operation and precise stopping, while during descent, the drive can generate electricity and feed it back to the grid, improving energy utilization efficiency.
  • Electric Vehicles: Regulates the motor speed and torque of electric and hybrid vehicles, achieving efficient energy utilization and smooth vehicle operation. During braking, the drive can generate electricity, feeding the braking energy back to the battery, thereby extending vehicle range.

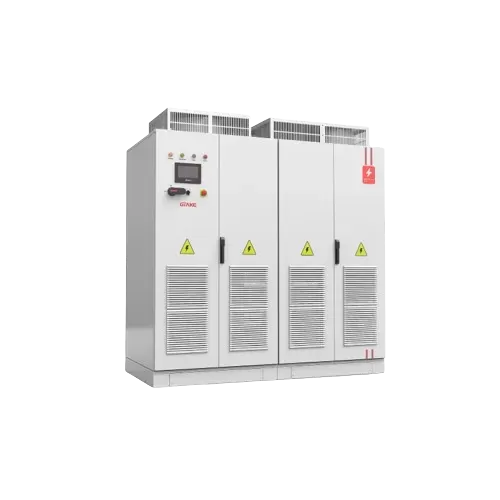

GTAKE focuses on delivering high-performance four quadrant AC drives. Our products use advanced technology, reliable quality, widely used in the field of industrial automation and a variety of motor drive systems. GTAKE is committed to providing customers with superior products and solutions. For more information or any questions, please feel free to contact us!
