Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE EV motor controllers are equipped with advanced features, some of which are listed as below:
01 All GTAKE electric vehicle motor controllers meet the standards GB/T 18488.1, GB/T 2423.17, GB14023.4, and GB/T 17619.4.
02 Quick torque respond time: <5ms; Torque control accuracy: ±5%.
03 Key components and parts are specialized for vehicles, with fast response and better performance.
04 Big power density, compact size and light weight. On the premise of ensuring the power, this can effectively reduce the weight of vehicle body.
05 Rational placement, delicate material selection, and advanced manufacturing engineering make the IP grade up to IP67 with the lightest weight. Well-designed frames and thickened conformal coating protect the products against harsh environment.
06 GTAKE EV/HEV motor controllers support terminal control and CAN bus control. CAN node hardware connection can be realized by GTAKE controllers directly, with the transmission baud rate up to 1 Mbps, real-time, safe and reliable.
07 When the vehicle is geared forward, but there is no step-on gas and brake signal, it could run at the set low speed with a matching output torque according to its load and slope degree of the road, shunned from unexpected slope slipping.
08 The highest efficiency for the whole system is >94%, while for motor system >96%;The area that its efficiency over 85%:>75%.
09 GTAKE motor controllers are equipped with capability of protection on short-circuit, over-current, over-voltage, overheating, over-load, and encoder disconnection, etc. Likewise, the battery protection can be well programmed and the controller can adjust feedback energy greatly.
10 Ambient temperature: -40°C~65°C;

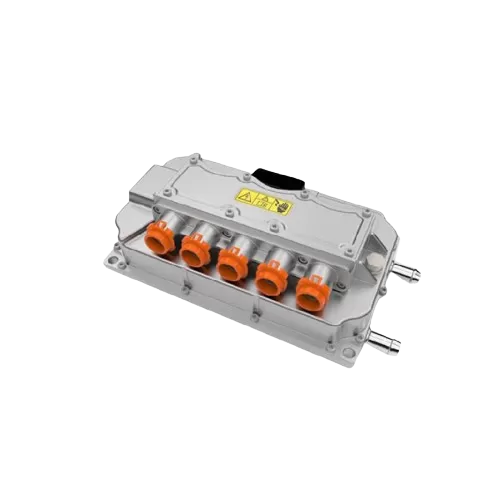

EV/HEV traction motor controller-G05 frame
Model | Applicable motor | Input voltage range | Peak current | Low-Voltage range |
KTZ34X25SDA** | Synchronous / asynchronous motor | 200V DC ~ 450V DC | 250 A/1min | 9 ~ 36V DC |
KTZ34X33SDA** | 200V DC ~ 450V DC | 330 A/1min | 9 ~ 36V DC |
Power Supply | |
Rated input voltage | 336V DC |
Input voltage range | 200V DC ~ 450V DC |
Auxiliary low-voltage power supply | 9V DC ~ 36V DC |
Output Data (U, V, W) | |
Output peak current | 250A / 330A |
Duration | 1 min |
Output frequency range | 0~1000 Hz |
Applicable Motor | |
Type | Synchronous / asynchronous motor |
Position sensor | Resolver |
Temperature sensor type | PT100 / PT1000 / NTC |
Temperature sensor channel | 2 |
CAN Communication | |
Terminal resister | Optional |
Protocol | Customized |
Mechanical parameter | |
Weight | 5±0.5 kg |
Dimension | W×H×D(mm): 176×121.9×291 |
Ambient | |
Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
Humidity | Relative humidity 5% – 95 %. No condensation |
Ambient temperature | -40ºC – 85 ºC |
Altitude | 0 – 2,000 m |
Rated output current derated 1% every 100 m above 1,000 m | |
Storage temperature | -40 – +85 ºC |
Efficiency | ≥98 % at rated working point |
IP grade | IP 67 |
Cooling method | Water cooling |
