Our EV motor controller is highly efficient, providing precise and reliable control for electric motors, significantly improving vehicle performance and efficiency. Contact us to learn more about our electric vehicle motor controllers and how they can benefit your EV or HEV application.
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE EV/HEV motor controllers (MCUs) are equipped with advanced features and advantages, some of which are listed as below:
01 All GTAKE electric vehicle motor controllers meet the standards GB/T 18488.1, GB/T 2423.17, GB14023.4, and GB/T 17619.4.
02 Quick torque respond time: <5ms; Torque control accuracy: ±5%.
03 To gain higher power density and overload capacity, SMD MOSFET and aluminum plate cooling technology are adopted.
04 Big power density, compact size and light weight. On the premise of ensuring the power, this can effectively reduce the weight of vehicle body.
05 Rational placement, delicate material selection, and advanced manufacturing engineering make the IP grade up to IP67 with the lightest weight. Well-designed frames and thickened conformal coating protect the products against harsh environment.
06 GTAKE EV/HEV motor controllers support terminal control and CAN bus control. CAN node hardware connection can be realized by GTAKE controllers directly, with the transmission baud rate up to 1 Mbps, real-time, safe and reliable.
07 Multi-functional I/O terminals, meeting the requirements of different applications.
08 The highest efficiency for the whole system is >94%, while for motor system >96%;The area that its efficiency over 85%:>75%.
09 GTAKE motor controllers are equipped with capability of protection on short-circuit, over-current, over-voltage, overheating, over-load, and encoder disconnection, etc. Likewise, the battery protection can be well programmed and the controller can adjust feedback energy greatly.
10 Ambient temperature: -40°C~55°C;
Application range
The D06 EV/HEV Motor Controller is designed for electric and hybrid electric vehicle applications. It is suitable for a wide range of vehicle types, including:
01 Electricmotorcycles
02 Golf cartspecial purpose vehicles
As a leading EV motor controller manufacturer, GTAKE is committed to providing high-quality, reliable products for the electric vehicle industry. Contact us to learn more about the D06 Electric Motorcycle Controller and our other electric vehicle motor controller products.

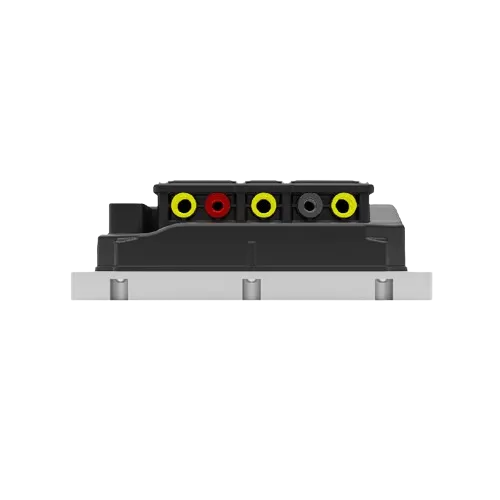

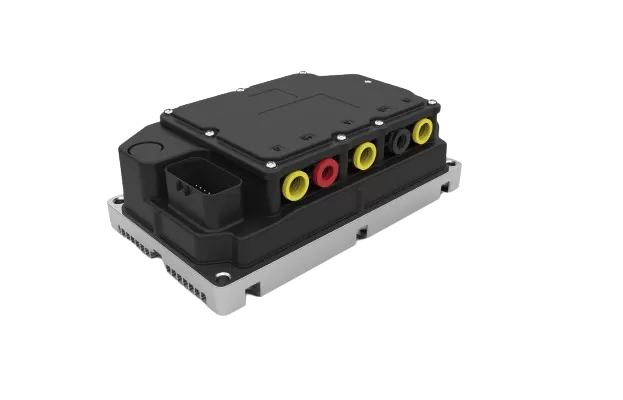

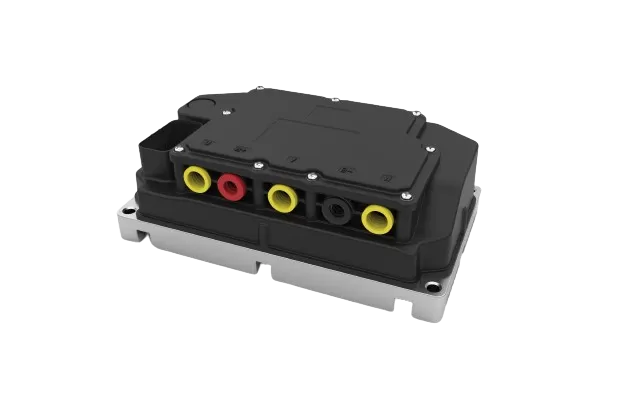

EV/HEV traction motor controller-D06 frame
Model | Applicable motor | Input voltage range | Peak current |
KTZ05H28ZMA** | Synchronous / asynchronous motor | 40V~70V | 280 A/1min |
Power Supply | |
Rated input voltage | 48V DC |
Input voltage range | 40V DC ~ 70V DC |
Output Data (U, V, W) | |
Output peak current | 280A |
Duration | 1 min |
Output frequency range | 0~600 Hz |
Applicable Motor | |
Type | Synchronous / asynchronous motor |
Position sensor | Magnetic encode (TLE5012B E1000 or AS5047D) |
Temperature sensor type | KTY84 / PT1000 / NTC |
Temperature sensor channel | 1 |
CAN Communication | |
Terminal resister | Optional |
Protocol | Customized |
Mechanical parameter | |
Weight | 2 kg |
Dimension | W×H×D(mm): 200×66×118 |
Ambient | |
Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
Humidity | Relative humidity 5% – 95 %. No condensation |
Ambient temperature | -40ºC – 55 ºC |
Altitude | 0 – 2,000 m |
Rated output current derated 1% every 100 m above 1,000 m | |
Storage temperature | -40 – +85 ºC |
Efficiency | ≥98 % at rated working point |
IP grade | IP 67 |
Cooling method | Natural cooling |
