As a leading supplier of electric vehicle controllers, GTAKE offers a full range of solutions to meet diverse customer needs. Contact us to learn more about our EV controller products and how we can help you with your electric vehicle projects.
Thanks to sophisticated engineers, scientific producing workmanship, rigorous quality control systems and management team, GTAKE EV/HEV motor controllers (MCUs) are equipped with advanced features and advantages, some of which are listed as below:
01 All GTAKE electric vehicle motor controllers meet the standards GB/T 18488.1, GB/T 2423.17, GB14023.4, and GB/T 17619.4.
02 Quick torque respond time: <5ms; Torque control accuracy: ±5%.
03 To gain higher power density and overload capacity, SMD MOSFET and aluminum plate cooling technology are adopted.
04 Big power density, compact size and light weight. On the premise of ensuring the power, this can effectively reduce the weight of vehicle body.
05 Rational placement, delicate material selection, and advanced manufacturing engineering make the IP grade up to IP67 with the lightest weight. Well-designed frames and thickened conformal coating protect the products against harsh environment.
06 GTAKE EV/HEV motor controllers support terminal control and CAN bus control. CAN node hardware connection can be realized by GTAKE controllers directly, with the transmission baud rate up to 1 Mbps, real-time, safe and reliable.
07 Multi-functional I/O terminals, meeting the requirements of different applications.
08 The highest efficiency for the whole system is >94%, while for motor system >96%;The area that its efficiency over 85%:>75%.
09 GTAKE motor controllers are equipped with capability of protection on short-circuit, over-current, over-voltage, overheating, over-load, and encoder disconnection, etc. Likewise, the battery protection can be well programmed and the controller can adjust feedback energy greatly.
10 Ambient temperature: -40°C~55°C;
Application range
The D03 EV/HEV motor controller has many applications in the electric vehicle industry. Some of its applications include:
01 Electric motorcycle controller: The D03 EV/HEV motor controller can also be used in electric motorcycles to control the speed and torque of the motor. It is widely used inhigh-speed electric motorcy
02 Electric forklifts: The D03 EV/HEV motor controller can be used inelectric forklifts to control the electric motor. Overall, the D03 EV/HEV motor controller can be used in a wide range of electric vehicles, including motorcycles, forklifts, and so on., to control the speed and torque of the electric motor.

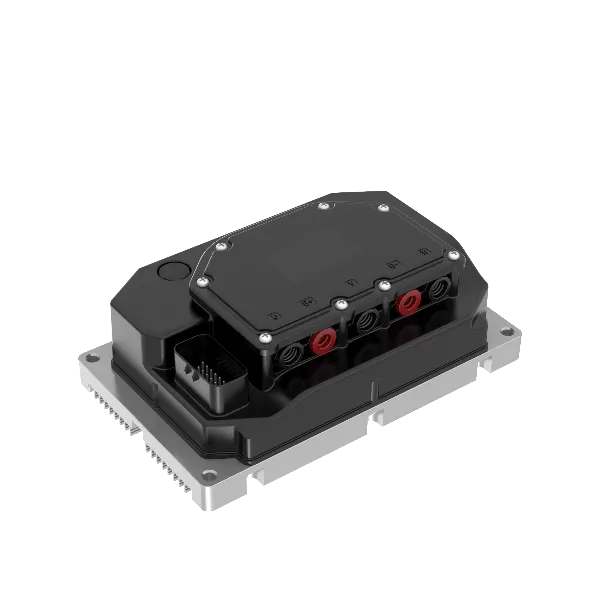

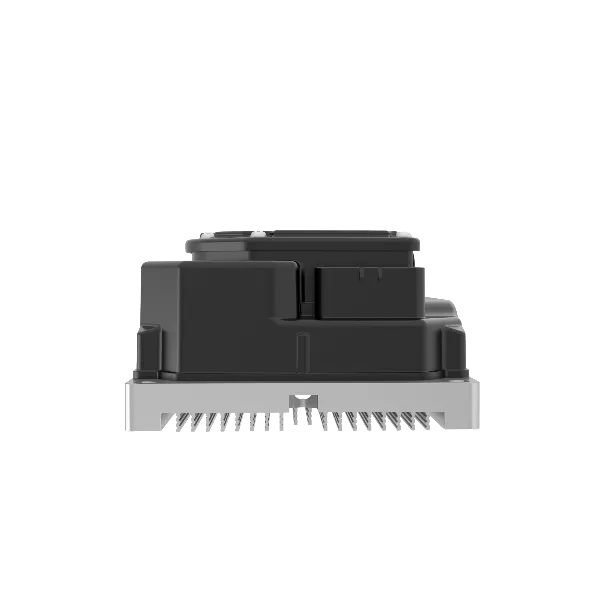

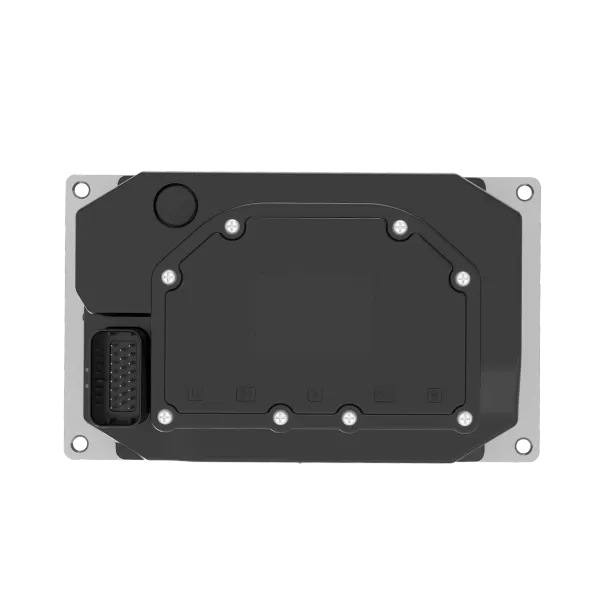

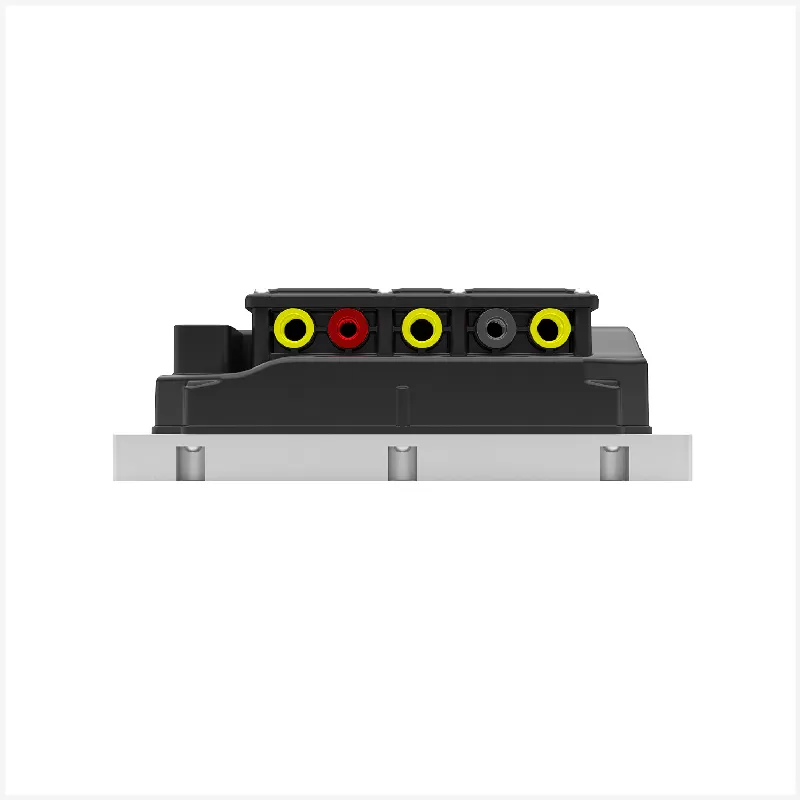

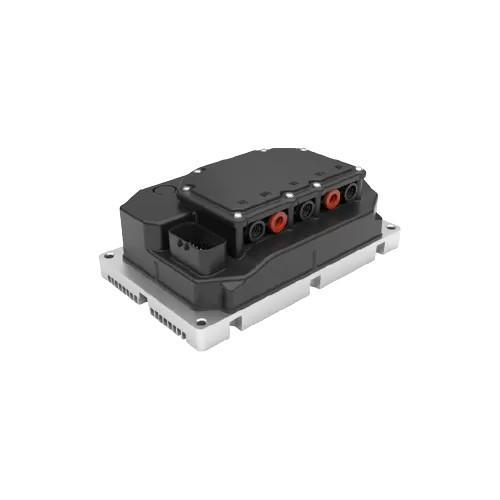

EV/HEV traction motor controller-D03 frame
Model | Applicable motor | Input voltage range | Peak current | Low-Voltage range |
KTZ07H32ZMA01 | Synchronous / asynchronous motor | 40V~90V | 320 A/1min | 9 ~ 16V DC |
KTZ07H35ZMA01 | 40V~90V | 350 A/1min | 9 ~ 16V DC |
Power Supply | |
Rated input voltage | 72V DC |
Input voltage range | 40V DC ~ 90V DC |
Auxiliary low-voltage power supply | 9V DC ~ 16V DC |
Output Data (U, V, W) | |
Output peak current | 320A / 350A |
Duration | 1 min |
Output frequency range | 0~600 Hz |
Applicable Motor | |
Type | Synchronous / asynchronous motor |
Position sensor | Magnetic encode (TLE5012B E1000 or AS5047D) |
Temperature sensor type | KTY84 / PT1000 / NTC |
Temperature sensor channel | 1 |
CAN Communication | |
Terminal resister | Optional |
Protocol | Customized |
Mechanical parameter | |
Weight | 2 kg |
Dimension | W×H×D(mm): 223×77×134 |
Ambient | |
Vibration | GB/T18488.1-2015 5.6.4.1, 5.6.4.2 and GB/T 28046.3-2011 |
Humidity | Relative humidity 5% – 95 %. No condensation |
Ambient temperature | -40ºC – 55 ºC |
Altitude | 0 – 2,000 m |
Rated output current derated 1% every 100 m above 1,000 m | |
Storage temperature | -40 – +85 ºC |
Efficiency | ≥98 % at rated working point |
IP grade | IP 67 |
Cooling method | Natural cooling |
