The spindle drive system is a key power execution unit in a CNC machine tool. It receives speed and auxiliary function commands from the CNC system and drives the spindle motor for machining operations. For CNC machining centers, the spindle must provide a wide range of stepless speed regulation, high low-speed torque, strong overload capability, and accurate positioning during automatic tool changing.
GTAKE’s GK820 High-performance AC Drive is designed for demanding motor-control applications that require precise speed control, torque control, fast response, and closed-loop positioning. Applied to CNC spindle systems, the AC drive works with the spindle motor and rotary encoder to provide closed-loop speed and position control for machining and spindle positioning.
During normal machining, the spindle primarily operates under closed-loop speed control. During automatic tool changing or other positioning operations, the spindle must stop at a specified angular position. This requires closed-loop position control with accurate encoder feedback.
A typical CNC spindle system consists of an AC motor drive, spindle motor, and rotary encoder. The encoder detects spindle speed and position, while the internal DSP and vector-control system of the GK820 High-performance AC Drive processes the feedback and generates the corresponding motor-control commands.
The spindle motor generally uses a squirrel-cage induction motor because of the high power requirements of CNC spindle applications. The rotary encoder can be installed externally on the spindle or integrated with the spindle motor, depending on the machine configuration.
The GTAKE CNC spindle positioning solution combines the GK820 High-performance AC Drive with closed-loop vector control and encoder feedback to provide accurate spindle speed and position control.
The complete CNC spindle electrical system consists of the CNC machine controller, AC drive, spindle motor, timer relay, and brake module. The GK820 High-performance AC Drive serves as the main motor-control unit between the CNC system and spindle motor.
AC power is connected to the main circuit input terminals (R, S, T) of the GK820 AC Drive through a circuit breaker. The drive output terminals (U, V, W) are connected to the spindle motor according to the motor wiring requirements.
If the motor rotation direction does not correspond to the run command from the CNC system, any two phases of U, V, and W can be switched, or the forward/reverse command can be adjusted through the control circuit.
The CNC system provides the frequency command through a 0–10 V or -10 V–10 V analog signal, which is connected to the AI1 and GND terminals of the AC motor drive.
The motor direction and run command are controlled through the digital input terminals.
When X1 and COM are connected, X1 is at a high voltage level and the motor runs forward. When X2 and COM are connected, X2 is at a high voltage level and the motor runs in reverse. When neither X1 nor X2 is connected to COM, the motor remains stopped.
Two relay contacts control the ON/OFF states of X1-COM and X2-COM. These relays are controlled by spindle forward and spindle reverse commands from the CNC system.
At the same time, relay output terminals RA and RC can be configured as fault outputs. This allows the CNC controller to monitor the operating status of the variable speed drive and respond to drive faults within the machine-control system.
The GK820 High-performance AC Drive is particularly suitable for CNC spindle applications that require both continuous speed regulation and accurate spindle positioning.
During cutting operations, the spindle requires stable speed and torque control across a wide operating range. During automatic tool changing, the spindle must stop at a specified angular position. The GK820 supports both requirements through closed-loop vector control, encoder feedback, zero-speed clamping, angular positioning, and pulse-based position control.
This makes the GK820 AC Drive suitable for CNC applications including:
CNC spindle applications require more than basic variable-frequency speed regulation. The spindle must respond quickly to changing machining conditions while maintaining stable speed, torque, and position.
The GK820 High-performance AC Drive provides closed-loop vector control with position-control capability, high low-speed torque, and fast torque response. According to GTAKE’s current product specifications, the drive supports 0 Hz 200% starting torque in closed-loop vector control, ±1 line pulse positioning accuracy, and torque response below 5 ms under closed-loop vector control.
These capabilities allow the AC drive motor control system to support both machining and spindle positioning requirements within one drive platform.

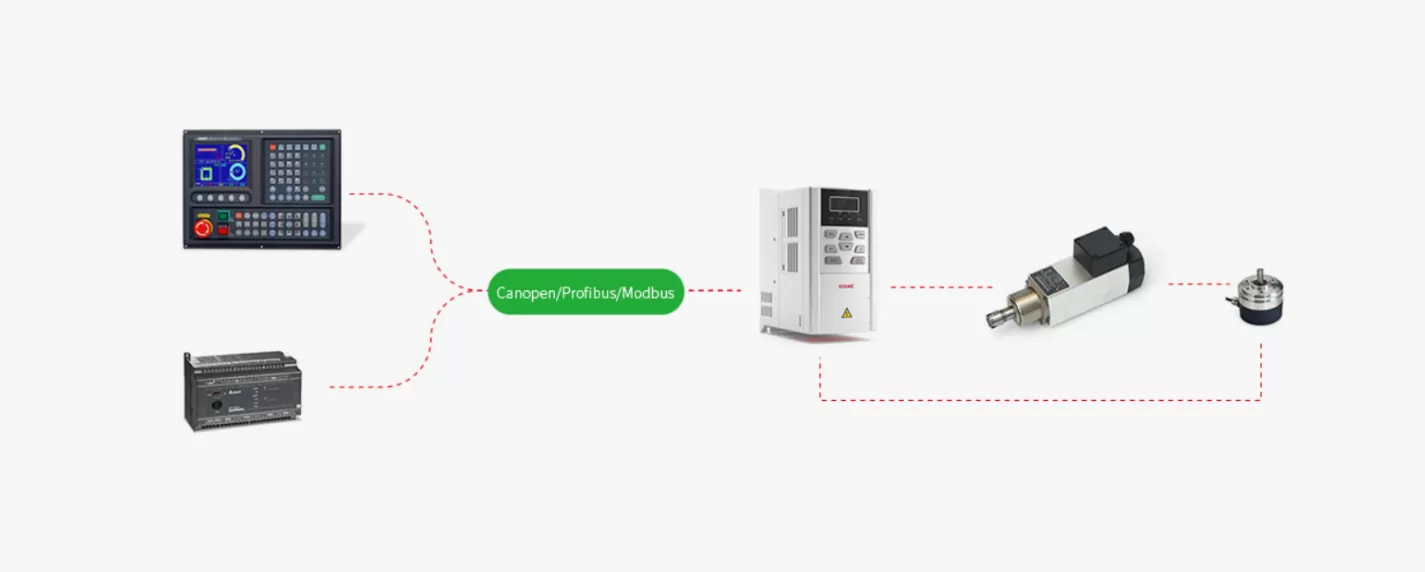

A CNC spindle system typically combines the CNC controller, AC drive, spindle motor, and encoder into a closed-loop control architecture.
The CNC controller provides the speed, direction, and positioning commands. The encoder provides spindle speed and position feedback, while the ac motor drive speed control system processes the feedback and adjusts motor output accordingly.
For spindle positioning, the control system switches from speed regulation to position control so that the spindle can stop at the required angular position. This is particularly important during automatic tool changing, when accurate spindle orientation is required.
By integrating closed-loop vector control and positioning functions, the GK820 provides a flexible motor AC drive platform for CNC spindle applications.
