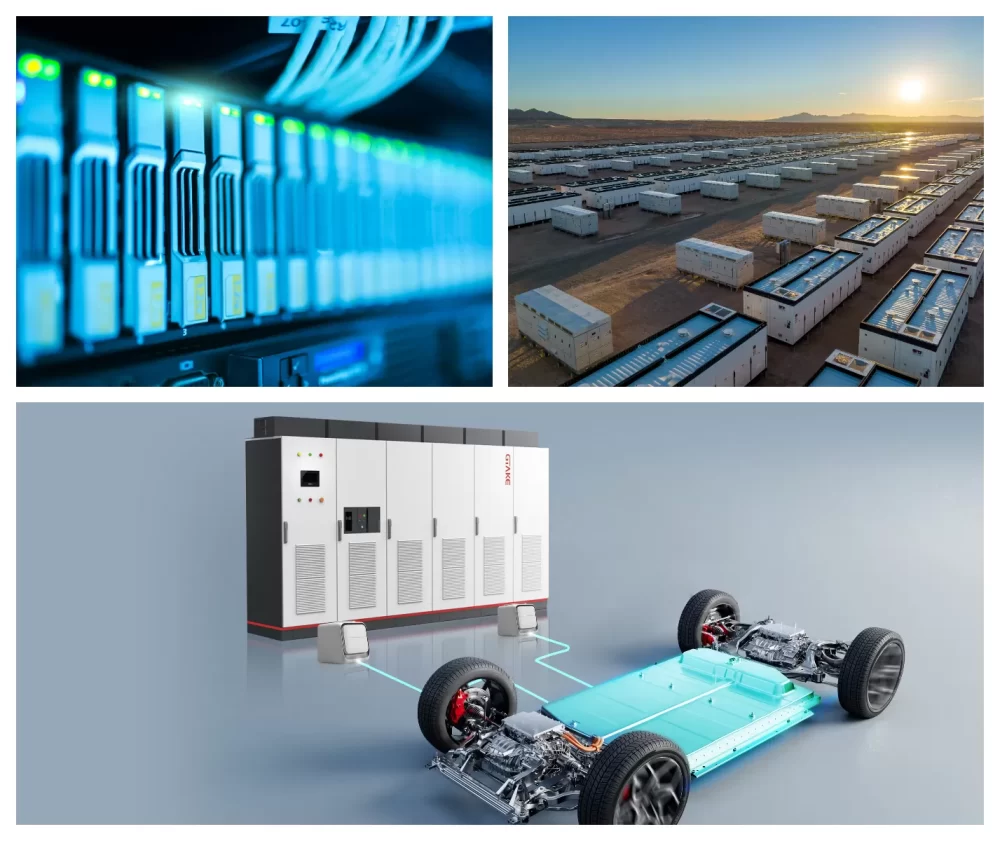

The PCBS Battery Pack Testing System utilizes advanced IGBT control technology to simulate various operating conditions for electric vehicles, energy storage stations, and communication power supplies and comprehensively tests the electrical performance of battery modules/packs, aiding in quality assessment, production testing, and batch consistency checks. Its modular design offers flexibility and independent channel operation for efficient testing.
High-Precision Current accuracy: ±0.03% F.S.
High-Precision Voltage accuracy: ±0.02% F.S.
High Sampling Rate: 10ms | Equipment specifications | Maximum constant power of the dual-channel parallel connection is 800 kW |
| Number of equipment channels | Single channel 1 Dual channels |
| Channel control mode | Each channel independently controls, current and voltage are measured in four-wire system |
| Channel characteristics | Discharge energy feed back to the power grid, adjacent channels can be arbitrarily paralleled |
| Protection | Data protection on power failure |
| Equipment ofline operation | |
| Continuous start-up | |
| Overvoltage protection, undervoltage protection, capacity protection, overcurrent protection,undercurrent protection, temperature protection | |
| Reverse connection protection | |
| Grid requirements | AC380V ±10% / frequency 50Hz ±2Hz |
| Dust-proof / heat dissipation | Yes |
| Unintended power loss protection | Equipped with power loss protection, resume the test step when power is restored after an interruption. |
| Safety Stop 1 | Yes |
| Working environment | Temperature: 0°C ~ 40°C. Humidity: 0% ~ 85% RH (non-condense) |
| Cooling method | Air cooling |
| Equipment noise | ≤75dB |
| Equipment efficiency | ≥95% (at equipment side) (low voltage models≥90%) |
| Power factor | Efficiency≥0.99 |
| THD | THD:≤3% (at full power) |
| IP grade | IP21, IP32 optional |
| High-precision current measurement | +0.03% F.S. |
| High-precision voltage measurement | +0.02% F.S. |
| Charge/discharge switching time | ≤6ms (-90%-90%FS, overshoot s2%FS) |
| Single channel power range | 30kW-800kW |
| High sampling rate | Max. 10 ms |
| Voltage range | 0V- 1700V |
| Dual channel current range | -2400A ~ 2400A |
| Current rise time | ≤3ms (10%-90% FS, overshoot≤2% FS) |
